7W 330Lm ultra slim Citizen chip warm white cut out 75mm of Led spotlight with UL price

Place of Origin : Zhongshan

Brand Name : Jinsun

Certification : SAA,CE,RoHS

Model Number : D9001A

MOQ : 20

Packaging Details : Standard packing or as customer's requirement

Delivery Time : 10-20days

Payment Terms : T/T(30% in advance), Western Union

Supply Ability : 40,000pcs/month

Power : 7W

Beam angle : 15°/25°/38°

Led light source : Citizen cob/Bridgelux cob

Luminous Flux : 330LM

Housing : 6063 Aluminum

CCT : 3000K/4000K/5000K

CRI : ≥82

PF : ≥0.90

IP Rating : IP40

Lifespan : 50000Hours

Warranty : 3years

Contact Now

7W 330Lm ultra slim Citizen chip warm white cut out 75mm of Led spotlight with UL price

Our Product Feature.

1.Patented Honeycomb Heatsink

2.Citizen cob/Bridgelux cob/Cree cob

3.50000 hours lifespan50000

4.CRI>80+ PF>0.9

5.High quality 6063 lathe aluminum

6.Same cutout different watt for optional

7.Same watt different beam angle for optional

Parameters:

	Item No.:	D9001A
	Power:	7W
	Beam angle:	15°/25°/38°
	Led light source:	Citizen cob/Bridgelux cob
	Luminous Flux:	330LM
	Housing:	6063 Aluminum
	CCT:	3000K/4000K/5000K
	CRI:	≥82
	PF:	≥0.90
	IP Rating:	IP40
	Lifespan:	50000Hours
	Warranty:	3years
	Non-dimmable and Dimmable for option,0/1~10V,DALI
	Global Patented Heatsink No.:ZL201310030769.3

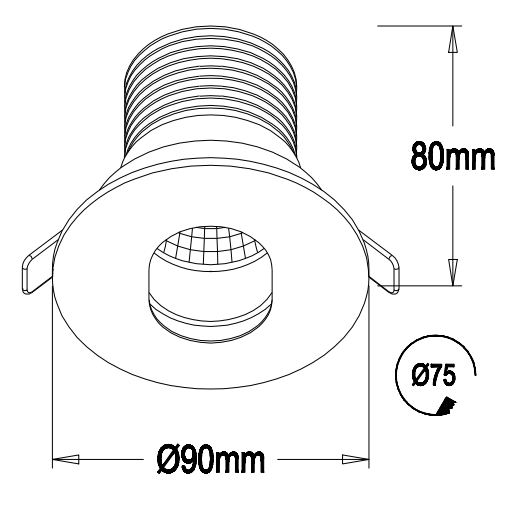

Wattage	Cutout Size/mm	Height/mm	Surface Size/mm	Beam Angle
3W	￠75	65	￠90		15°/25°
3W	￠75	65	￠90		15°/25°/38°
5W	￠75	80	￠90		15°/25°
5W	￠75	80	￠90		15°/25°/38°
7W	￠75	80	￠90		15°/25°
7W	￠75	80	￠90		15°/25°/38°
10W	￠75	100	￠90		15°/25°
10W	￠75	100	￠90		15°/25°/38°
15W	￠75	120	￠90		15°/25°
15W	￠75	120	￠90		15°/25°/38°

The Heatsink we instented on honeycomb radiator structure

structure

7W 330Lm ultra slim Citizen chip warm white cut out 75mm of Led spotlight with UL price

*Jingsen led adopt Citizen. Bridgelux&Cree .and other world first class Led manufacturer for strategic cooperation,become a very cost-effective and competitive commercial lighting brand. and provide professional OEM and ODM services.

* About driver we adopt Xiezhen,Meanwell,Tridonic manufacturer as cooperation.

7W 330Lm ultra slim Citizen chip warm white cut out 75mm of Led spotlight with UL price

The Test Report:Including Color Temperature ntegreting sphere,spectruem

7W 330Lm ultra slim Citizen chip warm white cut out 75mm of Led spotlight with UL price

Application View.

Our product Led cob down light suitable for High-end stores.chain stores,luxury malls,shopping mall and other commercial establishment lighting.

7W 330Lm ultra slim Citizen chip warm white cut out 75mm of Led spotlight with UL price

Certificate

High lumen high quality Led cob down light . track light with CE,RoHS,SAA certificate

7W 330Lm ultra slim Citizen chip warm white cut out 75mm of Led spotlight with UL price

Our Company View.

7W 330Lm ultra slim Citizen chip warm white cut out 75mm of Led spotlight with UL price

Trade Terms.

1. Payment: T/T, Western Union.

2. Samples can be available within 6-8 working days

3. Shipping freight is quoted under your requests

4. Shipping port: Zhongshan/Shenzhen/Guangzhou, China mainland5. Di5. The discount are offered based on order quantities

7W 330Lm ultra slim Citizen chip warm white cut out 75mm of Led spotlight with UL price

As a very active manufactures, we develop new designs nearly every month,If you have interest in it, it’s my pleasure to offer news to you regular.

Wish establish businee relationship with you.

Contact.

Tracy Lee

Skype:jinsuncall

E-mail: sales16@jinsunled.com

Tel: +86-760-88461929

Fax: +86-760-88461939

http://www.jingsenled.com

http://www.dt-lights.com

http://joe-d-t.sell.everychina.com
